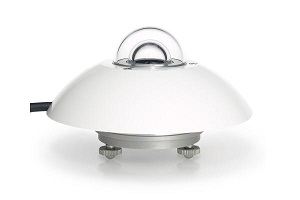

Collect high quality solar irradiance data with the Hukseflux SR11 First Class Pyranometer.
#9055
Recommended for finance-grade solar resource assessment campaigns, the Hukseflux SR11 is a thermopile pyranometer that is compliant with first class criteria from the ISO 9060 standard for solar radiation measurement devices. This high accuracy thermopile-based sensor measures global horizontal irradiance (GHI) and has a spectrally flat response across the full solar spectrum. The SR11 generates a small voltage signal that is proportional to the solar radiation flux, expressed in W/m2.
The SR20 is compatible with all Symphonie series data loggers when equipped with a Symphonie® SCM Card (SCM #6646, used with the SymphoniePLUS®3 Data Logger and older) or Pro Signal Conditioning Module (P-SCM #9128, used with the SymphoniePRO® Data Logger).
This sensor comes with a calibration certificate, sun screen, and 5 m (16.4') cable. Note that as with all thermopile pyranometers, regularly scheduled maintenance is imperative to achieve the sensor’s specified performance.
| Hukseflux SR11 Pyranometer (#9055) | |
|---|---|
| Description | |
| Sensor type | Thermopile solar radiation sensor; ISO 9060 ‘First Class’ compliant |
| Applications |
|
| Sensor range | 0 W/m2 to 2000 W/m2 |
| Spectral range | 305 nm to 2800 nm |
| Instrument compatibility |
|
| Output signal | |
| Signal type | Microvolt proportional to total solar radiation |
| Transfer function | Included on calibration certificate; for use with RNRG Symphonie see application note "Using Thermopile Pyranometers on Symphonie Loggers" |
| Accuracy | First Class per ISO 9060 |
| Calibration |
Calibration sheet included with each sensor defines output in microvolts per Watt/square meter; traceable to World Radiometric Reference (WRR) Calibration uncertainty < 1.8% (k=2) as specified by Hukseflux |
| Output signal range | -0.1 mV to + 50 mV |
| Drift | Less than 1% per year |
| Power requirements | |
| Power Required | Zero (passive sensor) |
| Installation | |
| Mounting | Mounts to tower with RNRG tower top mounting platform (9104) or side mounting boom (6772) (plane of array capable) |
| Tools required |
|
| Environmental | |
| Operating temperature range | -40 °C to 80 °C (-40 °F to 176 °F) |
| Operating humidity range | 0 to 100% |
| Physical | |
| Connections |
Bare wire leads from cable connect directly to logger see also logger user's manual for wiring diagram |
| Cable length | 5 m (16.4 feet) |
| Weight | 0.75 kg (1.7 lbs) |
| Dimensions | 144 mm X 90 mm (5.7 inches X 3.5 inches) |
| Materials | |
| Cable | Shielded 2 conductor |
| Detector | Thermopile |
| Enclosure | IP67 weatherproof anodized aluminum enclosure and stainless steel hardware |
