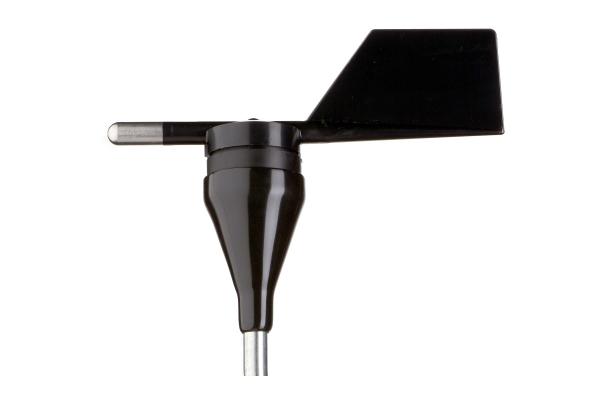

The 200P Wind Vane is one of the most widely used wind direction sensors in wind, solar, and meteorological applications worldwide.
#1904
Constructed of thermoplastic and stainless steel components, the 200P resists corrosion and features a high strength-to-weight ratio. The 200P is directly connected to a precision conductive plastic potentiometer located in the main body. When a constant DC excitation voltage is applied to the potentiometer, it produces an analog voltage output directly proportional to the wind direction.
The 200P includes a PVC terminal boot for additional protection from the elements.
| 200P Wind Direction Vane (#1904) | |
|---|---|
| Description | |
| Sensor type | Continuous rotation potentiometric wind direction vane |
| Applications |
|
| Sensor range | 360° mechanical, continuous rotation |
| Instrument compatibility | All Symphonie Data Loggers |
| Output signal | |
| Signal type | Analog DC voltage from conductive plastic potentiometer, 10K ohms |
| Transfer function | Output signal is a ratiometric voltage |
| Accuracy | Potentiometer linearity within 1% |
| Dead band | 8° Maximum, 4° Typical |
| Output signal range | 0 V to excitation voltage (excluding deadband) |
| Response characteristics | |
| Threshold | 1 m/s (2.2 mph) |
| Power requirements | |
| Supply voltage | Regulated potentiometer excitation of 1 V to 15 V DC |
| Installation | |
| Mounting | Onto a 13 mm (0.5 inch) diameter mast with cotter pin and set screw |
| Tools required | 0.25 inch nut driver, petroleum jelly, electrical tape |
| Environmental | |
| Operating temperature range | -55 °C to 60 °C (-67 °F to 140 °F) |
| Operating humidity range | 0 to 100% RH |
| Lifespan | 50 million revolutions (2 to 6 years normal operation) |
| Physical | |
| Connections | 4-40 brass hex nut/post terminals |
| Weight | 0.14 kg (0.3 pounds) |
| Dimensions |
|
| Materials | |
| Wing | Black UV stabilized injection molded plastic |
| Body | Black UV stabilized static-dissipating plastic |
| Shaft | Stainless steel |
| Bearing | Stainless steel |
| Boot | Protective PVC sensor terminal boot included |
| Terminals | Brass |
For Software downloads and details click here
